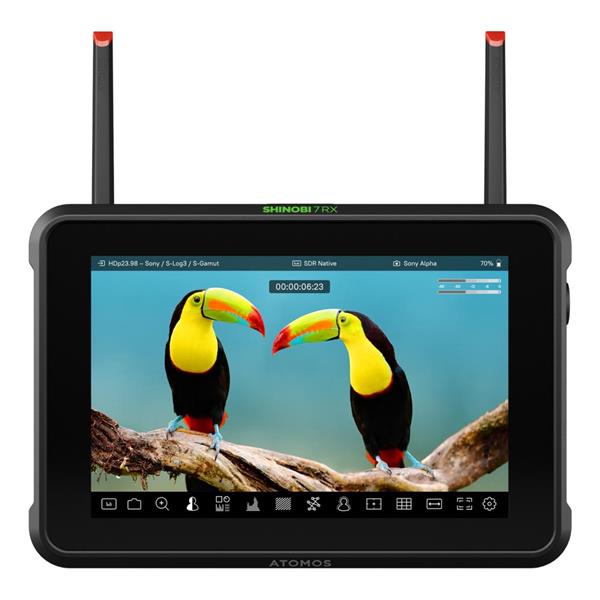

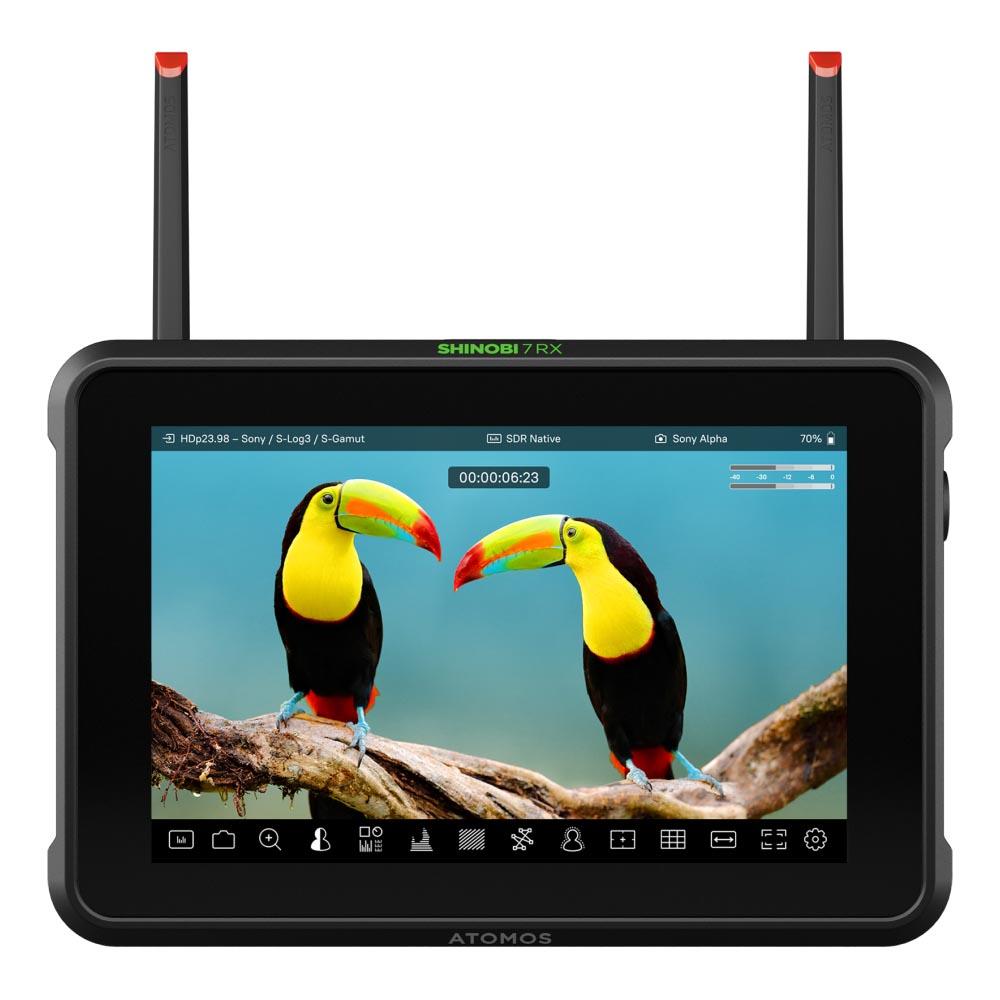

Atomos Shinobi 7 RX HDR Monitor
Product Code: B158486A
Share this item:
The Atomos Shinobi 7 RX HDR Monitor is a super bright 7-inch monitor, which offers camera control and wireless monitoring via the Atomos TX-RX system for focus pullers, and live production environments.
Pre-order today for first available UK stock. First deliveries from Oct.
Earn 719 Park Points
Trade in & Trade up
Looking to trade in your photo equipment? Get a quote now!
We Love
- Super bright 2200-nit display for outdoor monitoring without a hood or any other accessories
- Camera control via USB-C provides direct adjustment of various settings directly from the monitor
- Wireless monitoring with Wi-Fi 6E from up to 300m provides low-latency links for crews
- Includes Atomos’ full suite of professional monitoring tools such as waveform and LUT preview
- Rear mounted dual NP-F battery slots cater o extended power requirements for long operation times
Atomos Shinobi 7 RX HDR Monitor Summary
The Atomos Shinobi 7 RX HDR Monitor builds on the success of the Shinobi II, adding several important updates for filmmakers and production crews. The video monitor features a bright 7-inch HDR display with 2200 nits of calibrated peak brightness, which ensures visibility even in bright direct sunlight. It provides all of the monitoring tools which are frequently needed for work on set, while being lightweight enough to use as a director’s or focus puller’s monitor.
New for this RX model are camera control functions and wireless monitoring, both of which extend its value to live production environments. Compatible cameras from Canon, Fujifilm, Nikon, Panasonic, Sony, and Z CAM can be connected via USB-C or with a serial cable to enable aperture, shutter speed, ISO, and white balance adjustment directly from the 7-inch screen.
Crews who need to move around the set or on-location can use built-in Wi-Fi, which provides low-latency wireless monitoring when paired with an Atomos TX transmitter or external RTSP H.264 streams, where it boasts a range of up to 300m and under 60ms latency.
The Shinobi 7 RX also includes Atomos’ full suite of very popular monitoring tools, including waveform, histogram, zebra, false colour, focus peaking, zoom, and custom LUT support for accurate previews. There are dual NP-F battery slots on the rear too, which significantly extends operating time, while dual HDMI and 3G-SDI connectivity ensure broad compatibility with a variety of cameras and switchers.
Atomos Shinobi 7 RX Key Features
- Features a 7-inch HDR display with 2200 nits peak brightness
- Supports HDMI 2.0 and 3G-SDI input and output
- Displays 10+ stops dynamic range from Log, PQ, and HLG signals in real time
- Camera control is available via USB-C for Canon, Fujifilm, Nikon, Panasonic, Sony and Z CAM
- Touch to focus supported when using compatible cameras
- Wireless monitoring uses 5G Wi-Fi with under 60ms latency at distances up to 300m
- Built-in 3D LUT box allows loading and preview of creative looks
- Supports 8-channel, 24-bit audio input via SDI
- On-device calibration can be performed without a computer
- Two NP-F battery slots provide extended runtime
Atomos Shinobi 7 RX HDR Monitor in More Detail
Display and Monitoring
The Shinobi 7 RX is a 7-inch HDR display with a native resolution of 1920 x 1080. The screen reaches a calibrated 2200 nits of brightness, making it eminently usable outdoors without the need for a hood. It supports real-time monitoring of Log, PQ, and HLG signals with more than 10 stops of dynamic range. A wide selection of Atomos monitoring tools are built in, including waveform, RGB parade, vectorscope, EL Zone/ARRI false colour, zebra, peaking, and zoom up to 4x with pixel-for-pixel mapping.
Camera Control
This model features camera control for supported models from Canon, Fujifilm, Nikon, Panasonic, Sony, and Z CAM. Once the device is connected via USB-C or an optional serial cable, users can adjust aperture, shutter speed, ISO, white balance, and more, directly from the touchscreen. Touch to focus is also supported, which can help to streamline operation for solo shooters and focus pullers.
Wireless Monitoring
Shinobi 7 RX includes Wi-Fi 6E for wireless video reception. When paired with an Atomos TX transmitter, or used with RTSP H.264 streams, the monitor can display a live feed with less than 60ms latency at an impressive range of up to 300m range. This provides more versatility for directors, clients, or assistants to reposition without losing wireless connection.
Connectivity and Power
The monitor is includes HDMI 2.0 and 3G-SDI inputs and outputs, and supports signals up to 4Kp60 over HDMI or HDp60 over SDI. Audio support includes 8-channel 24-bit HDMI and 12-channel 24-bit SDI inputs, alongside a 3.5mm headphone jack.
Power is supplied via dual NP-F batteries, USB-C PD, or an optional DC in, which gives the crew options for location and studio use. The body is made from ABS polycarbonate with passive cooling for silent operation.
What’s in the box
- Atomos Shinobi 7 RX HDR Monitor
- Wi-Fi antenna
- Five antenna tips (black, white, yellow, green, red)
- Two antenna caps
- USB-C 2.0 cable (1m)
- Quick Start Guide
Atomos Shinobi 7 RX HDR Monitor Specifications
|
Dimensions |
198 x 133 x 39 mm |
|
Weight |
580g (excluding batteries and antennas) |
|
Mount Points |
1 x anti-rotation 1/4-inch / 3/8-inch (top and bottom) |
|
Construction |
ABS polycarbonate with passive cooling |
|
Operating Temperature |
Up to 40°C |
|
Display |
7-inch HDR, 1920 x 1080, 2200 nits, 16:9 aspect ratio |
|
Colour Gamut |
Rec.709, BT.2020, DCI-P3, HDR PQ, HLG |
|
Video Input |
HDMI 2.0, 3G-SDI |
|
Video Output |
HDMI 2.0, 12G-SDI |
|
Supported Formats |
Up to 4Kp60 (HDMI), up to HDp60 (SDI), 1080p up to 120fps |
|
Wireless |
Wi-Fi 6E for Atomos TX or RTSP H.264 |
|
Camera Control |
USB-C or serial (model dependent) |
|
3D LUT Support |
.cube (17 & 33 point) with downstream loop-out |
|
Audio |
8-channel 24-bit via HDMI, 12-channel 24-bit via SDI, 3.5mm headphone out |
|
Power Options |
Dual NP-F slots, USB-C PD input, optional DC in, USB PD out up to 13W |
|
Calibration |
On-device calibration with compatible calibrators |
|
Monitoring Tools |
Waveform, vectorscope, histogram, false colour, peaking, zebras, frame guides |
Thinking of choosing finance?
Finance is a great way to spread the cost of your purchase. To make it easy we have teamed up with Omni, one of the UK’s leading finance specialists, so that you can apply for and complete a loan application quickly, easily and informatively.
Omni Capital Retail Finance Ltd which is a credit provider/ lender regulated by the Financial Conduct Authority whose finance options are best suited for you and your purchase.
Simply add the items you love to your basket. Once you are at the checkout select the finance option that suits you and choose Omni. The quick application form is simple and should take no more than a couple of minutes to complete and you will receive a decision instantly. Easy!
Use our finance calculator to check the impact of various loan values, terms and interest rates on the total amount you need to pay and the monthly repayments.
Representative example:
Buy a £1,200.00 camera and pay a 10% deposit of £120. You'll borrow £1,080 over 24 months with an annual interest rate of 14.9% (fixed) with a first payment of £52.04 followed by 23 monthly repayments of £51.83. The total amount payable will be £1,244.13 14.9% APR Representative.
Finance available See options |
|
|
Check your eligibility
To be considered for finance, you will need to meet all of the following criteria:
- Are at least 18 years old
- Are in regular full or part-time employment (minimum 1 hour per week or £10,000 income per annum), unless you are retired and receiving a private or company pension, or you are in receipt of disability living allowance
- Are a permanent UK resident and have lived in the UK for at least 3 years
- Have a UK bank account capable of accepting Direct Debits
- Have a good credit history with no late payments, Debt Relief Orders, County Court Judgments or bankruptcies.
Please note that, due to calculations, your monthly repayment may differ very slightly from what you were expecting. Please check your monthly repayment figure before proceeding
Missed or late payments will result in fees and additional interest on your loan and can also affect your credit file and your ability to obtain credit in the future.
Credit is subject to status, UK only, 18+
Park Cameras Limited is a credit broker, not a lender and is authorised and regulated by the Financial Conduct Authority (FRN 680161). We do not charge you for credit broking services. We will introduce you exclusively to finance products provided by Omni Capital Retail Finance Ltd.
Omni Capital Retail Finance Ltd which is a credit provider/ lender regulated by the Financial Conduct Authority, Firm Reference Number: 720279. For more information please go to www.omnicapitalretailfinance.co.uk/contact/customer or visit www.omnicapitalretailfinance.co.uk.
Find out more about paying with finance here and Omni Capital Retail Finance Ltd terms here
Our Verdict
The Atomos Shinobi 7 RX HDR Monitor is a useful new tool for production teams, which refines what a standard compact 7-inch monitor can do for professionals. It takes the daylight-viewable screen and monitoring tools of earlier Shinobi screens and adds wireless video reception and comprehensive camera control for select brands. Both of these features ensure that the Shinobi 7 RX can provide a more flexible solution for live productions and remote control. Whether used as a director’s display, a focus puller’s tool, or a preview monitor, it provides a stable, low-latency feed with visibility even in very bright conditions.
The monitor includes support for HDMI and SDI input and output, 3D LUT preview, and professional audio channels that ensures compatibility across most common cameras and switchers. Dual NP-F battery slots and USB-C power options keep the monitor running through longer shoots, while the 580g body is light enough to be held all day.
The Shinobi 7 RX is a capable solution for location and studio sets, which could be ideal for production teams who need a reliable HDR monitor with wireless functionality and integrated camera control.
