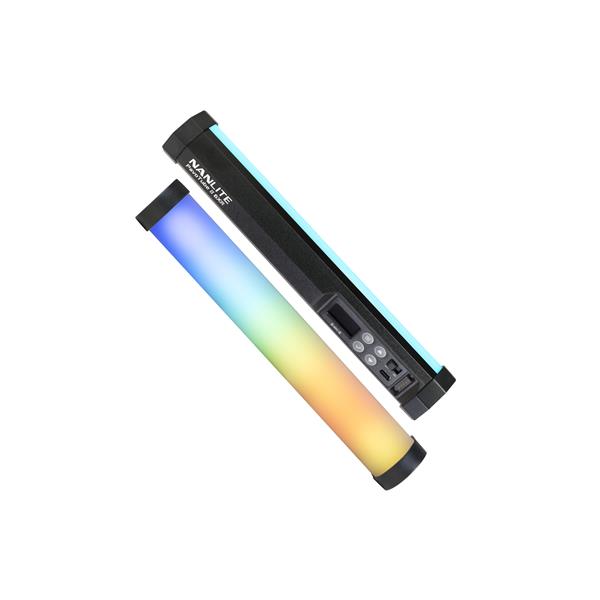

Nanlite PavoTube II 6XR LED RGBWW Pixel Tube Light

PavoTube II 6XR LED RGBWW Pixel Tube Light

The new NANLITE PavoTube II 6XR is the perfect go-anywhere full-colour LED tube light with pixel effects and professional wireless control. At just 25cm long it has 8 individually controllable pixels for smooth flowing lighting effects, and also delivers exceptional output and high accuracy. It has an internal battery as well as PD 3.0 power input, as well as Bluetooth, DMX/RDM and LumenRadio CRMX control. In short it has all the features professionals need, enabling them to focus on the creative process of adjusting light and colour.

PavoTube II 6XR Key Features

• LED RGBWW Pixel Tube Light.
• Weighs only 270g or approx. 25cm long, with a standard T12 tube size.
• Wide CCT range of 2700K-12000K with 150 green/magenta adjustment.
• Excellent colour rendition with CRI/TLCI average 96/97, TM-30 Rf/Rg average 93/100.
• Multiple control methods: On board, Nanlink App 2.0, DMX/RDM, LumenRadio, CRMX.
• Five lighting modes: CCT, HSI, Gel, Effect and Pixel effect.
• 15 Built-in special effects with customizable parameters in each effect.
• 10 Built-in pixel effects allow for multi-pixel sync control.
• Various power supply options: Built-in battery, DC adapter, PD 3.0 adapter, NP-F550 Battery grip.
• Compatible with PavoTube II 6C accessories.
• Supports firmware update via USB-C port.

Soft Touch Lighting for Any Scene
The PavoTube II 6XR incorporates NANLITE’s RGBWW colour mixing technology, providing a colour temperature range of 2700K to 12000K and ±150 green/magenta adjustment. In contrast to comparable pixel tube lights of its size, it delivers impressive output 562 lux@0.5m(5600K) coupled with high accuracy. The PavoTube II 6XR features a uniquely designed diffuser that
renders the light softer and more uniform, capable of elegantly wrap around the subject. It offers versatility, excelling as a fill light to enhance close-up shots and refine details, as well as a practical light source in medium to large scenes, where it can effectively illuminate specific areas.

Optimized White Light Accuracy
Enhanced white light correction is achieved through Nanlite’s advanced RGBWW colour mixing technology. This technology utilizes the RGB chips in the PavoTube II 6XR to generate of accurate representations of different white light sources, resulting in superior colour rendering. Consequently, users can rely on the consistent light quality for professional productions.

Flowing with 8 Controllable Pixels
Each PavoTube II 6XR features 8 controllable pixels within its 22.5cm long illuminated area. Users can control pixel effects and adjust various parameters directly on the light, or via the
NANLINK App 2.0. Importantly the light also gains the flexibility to independently program each pixel through DMX/RDM or LumenRadio CRMX, greatly enhancing the ability to create customized effects in a professional lighting control setup.

Versatile Lighting, Limitless Creativity
The PavoTube II 6XR is equipped with five lighting modes for limitless creativity, including CCT, HSI, gel, lighting effects, and pixel effects, each offering extensive options and exceptional colour accuracy. The 10 built-in pixel effects allow for multi-pixel sync control, making it easy to create dynamically flowing light effects. The PavoTube II 6XR can transform everyday visuals into dynamic scenes, whether it’s through its continuous output of cool or warm light, colour light, or the smooth performance of special effects and pixel effects.

Delicate Design, Easy Setup
The PavoTube II 6XR is a standard T12 tube size and weighs only 270g, ensuring a comfortable grip with no noticeable heaviness even during extended use. The back of the fixture has a polygonal design for stability, allowing it to be placed flat surfaces without the need for additional support or the fear of it rolling away. Built-in magnets at both ends enable direct attachment to magnetic surfaces. Alternatively, the included iron plates can be used for attachment to other surfaces.

Multiple Control Options
The PavoTube II 6XR offers versatile control options that ensures seamless operation in any environment. It can be controlled on-board, via Nanlink App 2.0, via DMX/RDM or with LumenRadio CRMX. Users can adopt the best control method for different shooting scenarios, allowing them to manage lighting whether on a feature film set, a smaller scale production, or a
creator video.

Flexible Power Supply
The PavoTube II 6XR has a built-in 3200mAh rechargeable battery, allowing it to work anytime, anywhere without cables. The USB-C port on the fixture supports a wide range of input voltages
and currents* and is compatible with the PD 3.0 protocol**, ensuring seamless integration with various modern power sources. Additionally, it can be used with the optional F550 battery grip, allowing it to be powered from a single NP-F550 type battery.

*DC 5V/2A, 5V/3A, 9V/2A, 9V/3A, 12V/2A, 12V/3A, 20V/1A
**PD3.0 adapter: (9-20V) 20W Min

Whether connected to a power outlet for continuous light output, or quickly recharging for on- the-go shooting, the PavoTube II 6XR provides total flexibility with uninterrupted operation. The
internal battery can also prevent disruptions caused by sudden loss of AC or external power. The PavoTube II 6XR can also be charged in the optional 8-light kit case, automatically connecting to power via electronic contacts on the fixture the moment each tube is placed in the case.

Compatible with 6C Accessories
The PavoTube II 6XR is compatible with the existing accessory ecosystem of the PavoTube II 6C, allowing users to continue using accessories they may already own. This convenient compatibility means users don’t need to prepare different accessories if using both fixtures together. The PavoTube II 6XR’s complete accessory ecosystem includes over 20 accessories across 7
categories (clip/holder, mounting, modifier, waterproofing, cable, power supply, storage), enabling light shaping and mounting for flexible adaptation to various scenarios, empowering
limitless creativity.
